Description

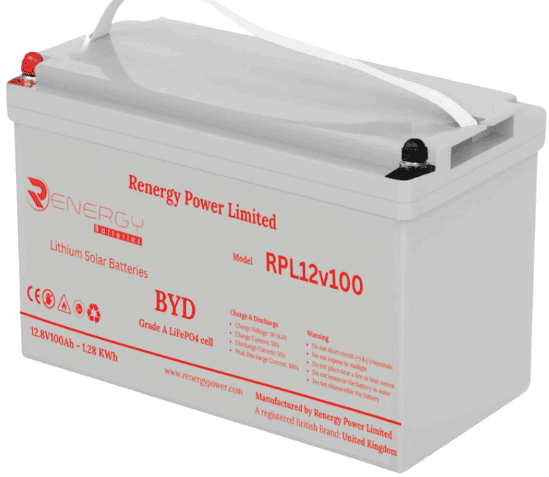

The RPL12V100 is a compact and high-performance 12V lithium iron phosphate (LiFePO4) battery designed for reliable energy storage in solar systems, backup power setups, caravans, and off-grid applications. With a 1.28kWh capacity, this battery delivers efficient, stable, and long-lasting power in a lightweight and space-saving design.
Built using BYD Grade A LFP cells, the RPL12V100 ensures superior safety, durability, and consistent performance. Its integrated Battery Management System (BMS) provides intelligent protection by monitoring voltage, temperature, and current to prevent overcharging, deep discharge, and short circuits.
Compatible with most inverter brands, this battery offers flexible installation options and supports both series and parallel connections for scalable energy solutions.
🔹 Key Features
-
1.28kWh energy storage capacity
-
BYD Grade A LiFePO4 cells for enhanced safety and reliability
-
Integrated intelligent BMS for full battery protection
-
Fast charging performance
-
Lightweight and compact design (10.5kg)
-
Compatible with a wide range of inverter brands
-
Supports connection up to 4 in parallel and 4 in series
-
High efficiency above 98%
-
Long cycle life:
-
6000 cycles at 80% DOD
-
4000 cycles at 100% DOD
-
-
3-year manufacturer warranty
-
Design life exceeding 10 years
Technical Specifications
| Items | Description |
|---|---|
| Rated Voltage | 12.8V |
| Rated Capacity | 100Ah |
| Rated Energy | 1280Wh (1.28kWh) |
| Output Voltage Range | 10V ~ 14.6V |
| Charging Voltage | 14V ~ 14.6V |
| Cut-Off Voltage | 10V |
| Max Charging Current | 100A |
| Recommended Charging Current | 50A |
| Max Discharging Current | 100A |
| Efficiency | ＞98% |
| Dimensions (L × W × H mm) | 330 × 171 × 215 |
| Weight | 10.5 kg |
| Humidity | 5% ~ 95% Relative Humidity |
| Charging Temperature | 0°C ~ 60°C |
| Discharging Temperature | -20°C ~ 60°C |
| Storage Temperature | -10°C ~ 30°C |
| Cycle Life | 8000 cycles @50% DOD, 6000 cycles @80% DOD, 4000 cycles @100% DOD (0.2C, 25°C) |
| Warranty | 3 Years |
| Design Life | ＞10 Years |
