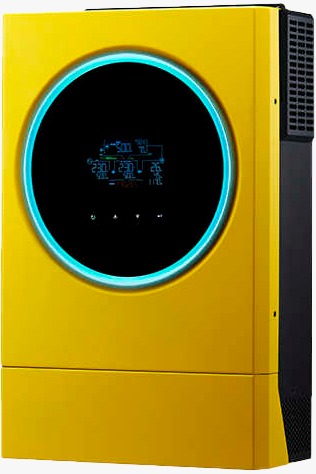

InfiniSolar V 4 TWIN 6KW Hybrid Inverter

Description

The InfiniSolar V 4 TWIN 6KW Hybrid Inverter is a powerful 1-phase in / 1-phase out energy solution designed for both grid-tie and off-grid applications with battery storage support. Built for performance, flexibility, and smart energy management, this inverter is ideal for residential and small commercial solar systems.

With advanced hybrid technology, it seamlessly integrates solar panels, batteries, and grid power to deliver stable, efficient electricity at all times.

---

⚡ High Power & Solar Performance

• Rated Output Power: 6000W

• Maximum PV Input Power: 7000W

• Maximum Charging Power: 6000W

• Maximum PV Input Current: 27A

• Maximum DC Voltage: 500VDC

• MPPT Voltage Range: 120VDC – 430VDC

• Number of MPP Trackers: 1

The inverter features a high-voltage MPPT solar charge controller that maximizes solar energy harvest, ensuring optimal system efficiency and faster battery charging.

---

🔌 Grid-Tie Operation

Designed for efficient grid interaction, the InfiniSolar V 4 TWIN offers:

• Nominal Output Voltage: 220/230/240VAC

• Selectable Output Voltage Range:

  • 184 – 264.5VAC

  • 195.5 – 253VAC

• Nominal Output Current: 26A

• Power Factor: > 0.99

• Maximum Conversion Efficiency (DC/AC): 96%

This high efficiency ensures minimal energy loss and maximum savings.

---

🔋 Advanced Off-Grid & Backup Capability

The inverter supports off-grid operation and backup power with:

• AC start-up voltage: 120 – 140VAC

• Acceptable input voltage range: 90 – 280VAC

• Maximum AC input current: 40A

• Programmable supply priority (PV / Battery / Grid)

It intelligently switches between solar, battery, and grid power to maintain uninterrupted energy supply.

---

🎛 Smart Features & User Control

• On-grid inverter with energy storage capability

• Dual outputs for smart load management

• Touchable button with 4.3″ colored LCD display

• Built-in WiFi for mobile app monitoring

• RGB indicator lights for system status

• User-adjustable charging current and voltage

• Programmable operating modes:

  • Grid-tie

  • Off-grid

  • Grid-tie with backup

• Reserved communication port for BMS integration

• Parallel operation up to 9 units for expanded power capacity

---

🌍 Ideal For

• Residential solar systems

• Commercial installations

• Hybrid solar projects

• Backup power systems

• Smart energy management setups
